【DK-DEV-10AX115S-A】Altera Arria 10 GX FPGA Development
- 产品型号： DK-DEV-10AX115S-A/A10GFP（Part No:T0426）
- 产品品牌： TERASIC友晶科技/Intel FPGA
- 产品规格： Arria 10 GX 10AX115S2F45I1SG
- 产品价格： 欢迎咨询采购，量多优惠多，提供完善的售后保障和支持！
- 咨询热线：18062095810
Altera’s Arria® 10 GX FPGA Development Kit delivers a complete design environment that includes all hardware and software you need to start taking advantage of the performance and capabilities available in Arria 10 GX FPGAs for your design needs.

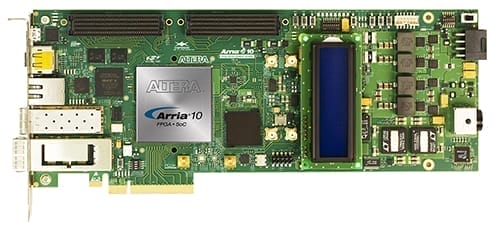

Figure 1. Arria 10 GX FPGA Development Kit
You can use this development kit to:
- Develop and test PCI Express® (PCIe®) 3.0 designs using the PCI-SIG®-compliant development board.
- Develop and test memory subsystems consisting of DDR4, DDR3, QDR IV, and RLDRAM III memories.
- Develop modular and scalable designs by using the FPGA mezzanine card (FMC) connectors to interface to a FMC mezzanine card provided by Altera partners and supporting protocols, such as JESD204B, Hybrid Memory Cube, Bandwidth Engine 2, Serial RapidIO®, 10 Gbps Ethernet (10GbE), SONET, Common Public Radio Interface (CPRI),OBSAI, and many others.

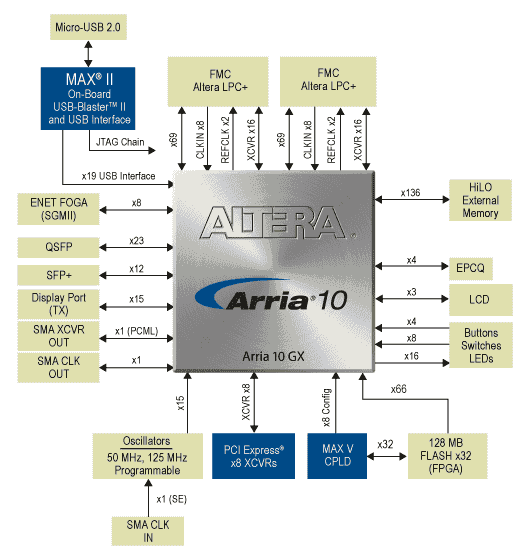

Figure 2. Arria 10 GX FPGA Development Kit Block Diagram
- Arria 10 GX FPGA development board running on Arria 10 GX 10AX115S2F45I1SG2 FPGA
- 1 GB DDR4 SDRAM, 2GB DDR3 SDRAM, and RLDRAM3 (16 Meg x 36) daughtercards
- Two FMC loopback cards supporting transceiver, LVDS and single-ended I/Os
- One quad small-form-factor pluggable (QSFP) and one SFP+ port
- Two FMC low-pin count (LPC + 15 transceivers) connector
- PCIe x8 edge connector
- Serial digital interface (SDI) channel
- Character LCD
- AC adapter power cables
- Ethernet and USB cables
Software1
- Design examples
- Board Update Portal design
- Board Test System (BTS) design
- Documentation
- Arria 10 GX FPGA Development Kit User Guide
- Board design files
- Design software3
- Quartus Prime software (required)
- Nios® II processor (optional)
- MegaCore® intellectual property (IP) library (optional)
-
Mentor Graphics® ModelSim®-Altera software (optional)
Notes:
- Download and install Arria 10 GX FPGA Development Kit installer first.
- A one-year license for Quartus® Prime design software ships with the development kit.
| No | 产品名称 | 售价(RMB) |
|---|---|---|
| 1. |
[A10GFP] Altera Arria 10 GX FPGA Development Kit
产品编号: T0426
 重量: 4,300g |
xxx |
| No | 产品名称 | 售价(RMB) |
|---|---|---|
| 1. |
[A10GFP] Altera Arria 10 GX FPGA Development Kit
产品编号: T0426
重量: 4,300g |
xxx |
Documents
| 标题 | 版本 | 档案大小(KB) | 新增日期 | 下载 |
|---|---|---|---|---|
| Arria 10 GX FPGA Package Installer (ES Edition) |
1.0  |
2015-11-30 | ||
| User Guide (ES Edition) |
1.0 |
2015-11-30 | ||
| Quick Start Guide |
1.0 |
2015-11-30 | ||
| Board Schematic (ES Edition) |
1.0 |
2015-11-30 | ||
| Golden Systems Top |
1.0 |
2015-11-30 |
