【DK-DEV-5CEA7N】Intel Cyclone V E FPGA 开发套件
- 产品型号： DK-DEV-5CEA7N/C5EFP
- 产品品牌： TERASIC友晶科技/Intel FPGA
- 产品规格： Cyclone V E FPGA Development Kit开发套件具备一台 5CEFA7F31I7N 速度等级芯片器件。
- 产品价格： 欢迎咨询采购，量多优惠多，提供完善的售后保障和支持！
- 咨询热线：18062095810
The Cyclone® V E Development Kit offers a comprehensive general purpose development platform for many markets and applications, including: Industrial Networking, Military, and Medical applications. The kit features an the Altera®Cyclone V device and a multitude of on board resources including: multiple banks of DDR3 and LPDDR2 memory, LCD character display, LEDs, user switches, USB and RJ-45 connectors. The Cyclone V E Development Kit gives industrial equipment designers greater flexibility in implementing real-time Ethernet communications with Industrial Ethernet intellectual property (IP) cores.
Featured devices:
-
Cyclone V E FPGA - 5CEFA7F31C7NES
-
MAX V CPLD - 5M2210ZF256I5N (system controller)
-
MAX II CPLD - EPM240M100I5N (embedded USB Blaster II)
Configuration:
-
On-board USB-BlasterTM II cable (USB, PHY, Max® V CPLD)
-
JTAG direct via JTAG header
Memory devices
-
DDR3 x32 at 300 MHz (soft memory controller)
-
LPDDR2 x16 (soft memory controller)
-
Flash (512 Mb)
-
SSRAM (18 Mb)
-
EEPROM (64 Kb)
General user input/output
-
User control
-
Four pushbuttons
-
Five LEDs
-
Four DIP switches
-
2x Resets (CPU reset, Dev Clear)
-
LCD: Character LCD (16x2)
Components and interfaces
-
RJ45 for Ethernet
-
UART interface
Quartus® II design software information
-
Quartus II Web Edition Software

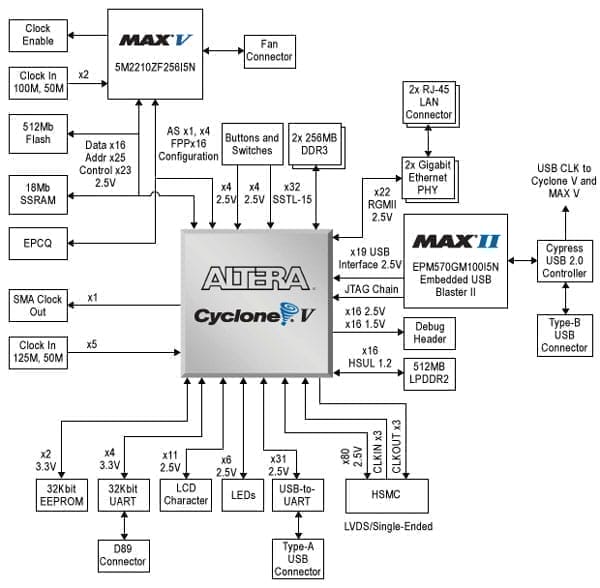

Altera Cyclone V E FPGA Development Board Block Diagram
| No | 产品名称 | 售价(RMB) |
|---|---|---|
| 1. |
[C5EFP] Altera Cyclone V E FPGA Development Kit
产品编号: T0134
 重量: 3,500g |
xxx |
Documents
| 标题 | 版本 | 档案大小(KB) | 新增日期 | 下载 |
|---|---|---|---|---|
| Cyclone V E FPGA Development Kit User Guide (PDF) | 2015-03-19 |
 |
||
| Cyclone V E FPGA Development Board Reference Manual (PDF) | 2015-03-19 |
 |
CD-ROM
| 标题 | 版本 | 档案大小(KB) | 新增日期 | 下载 |
|---|---|---|---|---|
| Kit installation | 2015-03-19 |
 |
