【DE1-SoC】TERASIC友晶DE1-SoC Board

  • 产品型号: DE1-SoC[P0159]
  • 产品品牌: TERASIC友晶科技/Intel FPGA
  • 产品规格: Cyclone V SoC 5CSEMA5F31C6 Device
  • 产品价格: 欢迎咨询采购,量多优惠多,提供完善的售后保障和支持!
  • 咨询热线:027-87538900

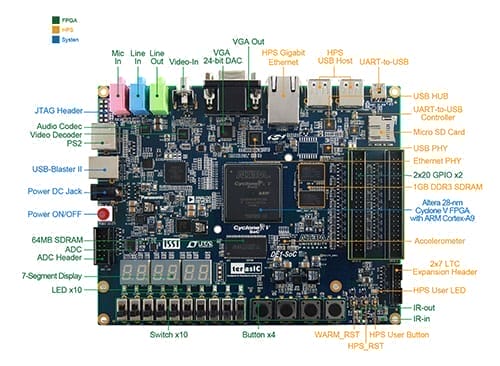

The DE1-SoC Development Kit presents a robust hardware design platform built around the Altera System-on-Chip (SoC) FPGA, which combines the latest dual-core Cortex-A9 embedded cores with industry-leading programmable logic for ultimate design flexibility. Users can now leverage the power of tremendous re-configurability paired with a high-performance, low-power processor system. Altera’s SoC integrates an ARM-based hard processor system (HPS) consisting of processor, peripherals and memory interfaces tied seamlessly with the FPGA fabric using a high-bandwidth interconnect backbone. The DE1-SoC development board includes hardware such as high-speed DDR3 memory, video and audio capabilities, Ethernet networking, and much more.
The DE1-SOC Development Kit contains all components needed to use the board in conjunction with a computer that runs the Microsoft Windows XP or later ( 64-bit OS and Quartus II 64-bit are required to compile projects for DE1-SoC  ).

产品规格

芯片:Cyclone V SE SoC—5CSEMA5F31C6N

  • 双核 ARM Cortex-A9 (HPS)
  • 85K 可编程逻辑单元
  • 4450K 嵌入式内存
  • 6 个分立的锁相环
  • 2 个内存硬件控制器

配置资源

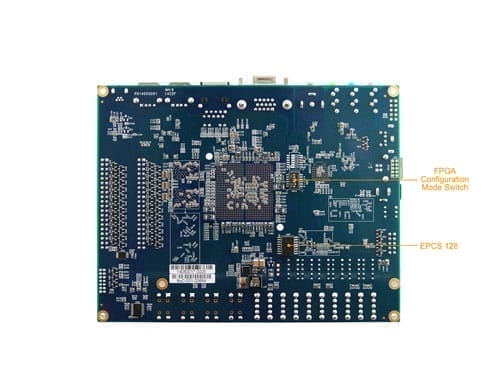

  • FPGA 端配置芯片 – EPCS128
  • 内建 USB Blaster II电路 (带常用的B型USB连接器)

存储器件

  • FPGA端 64MB (32Mx16) SDRAM
  • HPS 端 1GB (2x256MBx16) DDR3 SDRAM
  • HPS端 microSD card卡槽

外围设备

  • 2个USB 2.0 Host 端口(ULPI 接口,USB A型连接器)
  • UART to USB (USB Mini B型连接器)
  • 10/100/1000以太网路接口
  • PS/2 鼠标/键盘接口
  • IR 发射器/接收器
  • I2C 多路复用器

连接器

  • 两个 40引脚的GPIO扩展槽
  • 一个 10引脚的 ADC 输入插头
  • 一个LTC 连接器(其中包含一个SPI主模式接口,一个I2C总线,一个GPIO接口 )

显示

  • 24-bit VGA DAC

音频

  • 24-bit CODEC, 带有Line-in,line-out和microphone-in 三个插孔

视频输入

  • TV 解码器 (NTSC/PAL/SECAM) 以及 Video-in 接头

ADC

  • 采样频率: 500 KSPS
  • 通道数: 8
  • 分辨率: 12-bit
  • 模拟电压输入范围 : 0 ~ 4.096 V

开关,按钮,LED 灯

  • 5 个用户按键(FPGA 端 4 个, HPS端 1 个)
  • FPGA端 10 个用户开关
  • 11个用户LED灯 (FPGA 端 10 个, HPS端 1 个)
  • 2个HPS 复位按钮(HPS_RESET_n 和 HPS_WARM_RST_n)
  • 6个 7段数码管显示

传感器

  • HPS 端 G-Sensor

电源

  • 12V DC 输入

Block Diagram of the DE1-SOC Board

组件配置

  • Size:166*130 mm

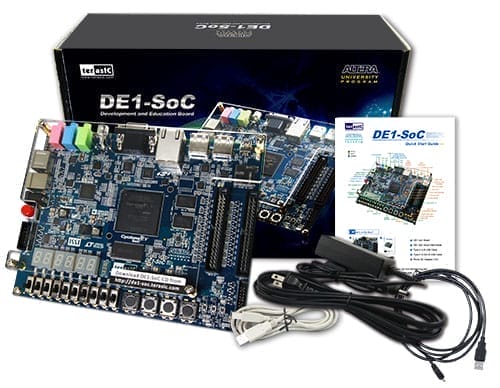

包装内容

  • DE1-SoC Board
  • DE1-SoC Quick Start Guide
  • Type A to B USB Cable
  • Type A to Mini-B USB Cable
  • Power DC Adapter (12V)
