The Intel^® Stratix^® 10 TX Signal Integrity (SI) Development Kit offers a complete design environment that includes both hardware and software for developing Intel Stratix 10 TX FPGA designs.

You can use this development kit to:

• Evaluate transceiver performance up to 28.3 Gbps for H-Tile and 58 Gbps for E-Tile
• Generate and check pseudo-random binary sequence (PRBS) patterns
• Dynamically change differential output voltage (VOD) pre-emphasis and equalization settings to optimize tranceiver performance for your channel
• Perform jitter analysis
• Verify physical medium attachment (PMA) compliance to PCI Express* (PCIe*), 10G/25G/50G/100G/200G/400G Ethernet, and other major standards


Hardware

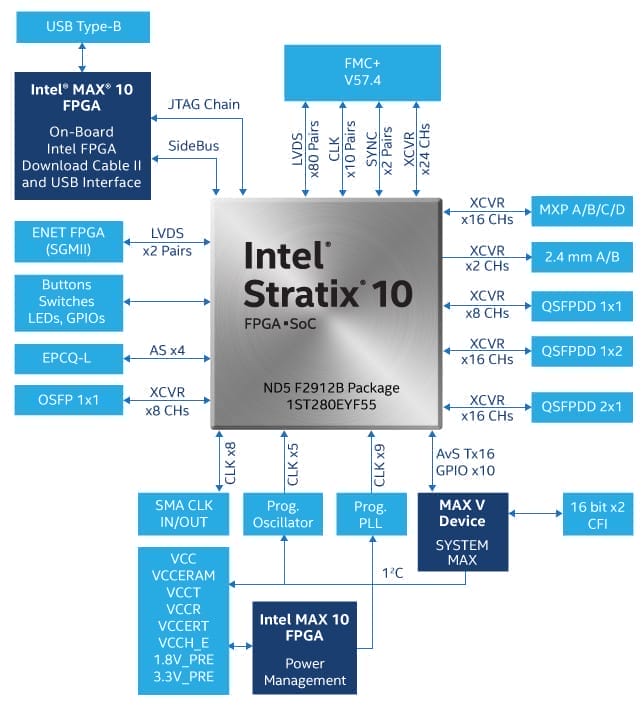

Stratix 10 TX Signal Integrity development board wth Stratix 10 TX FPGA FPGA mezzanine card (FMC) and loopback card AC adapter power cables Ethernet and USB cables



Software1
Design examples Board Test System (BTS) design Documentation Intel Stratix 10 TX SI Development Kit User Guide Board design files Design software2 Intel Quartus Prime software (required) Nios® II processor (optional) Intel FPGA intellectual property (IP) library (optional) Mentor Graphics® ModelSim*-Intel FPGA software (optional)

1. Download and unzip the Intel Stratix 10 TX SI Development Kit installer first. Install the Intel Stratix 10 TX SI BTS.
2. A one-year license for Intel Quartus® Prime design software is available upon purchase of the kit. License activation instructions and FAQs .

Documents

标题	版本	档案大小(KB)	新增日期	下载
Stratix 10 TX Signal Integrity Installer Package	ES (18.0)		2018-11-23
User Guide	ES Edition		2018-11-23
Quick Start Guide	ES Edition		2018-11-23
Board Schematic	ES Edition		2018-11-23
