【S5GFP+DVI】Stratix V GX Video Development System
- 产品型号: S5GFP+DVI(Part No:K0117)
- 产品品牌: TERASIC友晶科技/Intel FPGA
- 产品规格: Stratix V GX FPGA: 5SGXEA7K2F40C2N
- 产品价格: 欢迎咨询采购,量多优惠多,提供完善的售后保障和支持!
- 咨询热线:18062095810
The Stratix V GX FPGA Video Development System fills the need for the highest bandwidth, best performance video applications. The kit features an extensive feature-set of memories, including DDR3, QDRII+, and RLDRAM II. The QSFP optical cage, PCIe x8 edge connectors, SDI, and gigabit Ethernet options allow for blazingly fast interfacing with peripherals.
The DVI-HSMC daughter card part of the bundled package will allow developers to access high quality and high resolution video signals that can support resolution up to 1600x1200. A complete DVI video controller design with source code is provided.
Terasic recognized for its strong design expertise in high-end video, imaging and multimedia products have made available a video development package that targets video processing development. The platform can also allow users to experience advanced image processing designs incorporating VIP (Altera’s Video and Image Processing Suite MegaCore Functions).
Stratix V GX Video Development System
Featured device:
Stratix V GX FPGA: 5SGXEA7K2F40C2N
Configuration, status, and setup elements
JTAG
On-board USB-BlasterTM II cable
Fast passive parallel (FPP) configuration via MAX® V device and flash memory
One reset config push button
One CPU reset push button
Two configuration push buttons
Clocks
50-MHz, 125-MHz, 100-MHz, and 148.5-MHz programmable oscillators
SMA input (LVPECL)
General user input and output
10/100/1000Mbps Ethernet PHY (SGMII) with RJ-45 (copper) connector
16x2 character LCD
One 8-position dual in-line package (DIP) switch
Sixteen user LEDs
Three user push buttons
Memory devices
DDR3 SDRAM (1,152 MB, x72-bit wide)
QDR II+ SRAM (4.5 MB, 2-Mb x18-bit wide)
Footprint compatible to QDR II 4-Mb x18-bit wide
RLDRAM II (72-Mbyte CIO RLDRAM II with an 18-bit data bus)
Component and interfaces
PCIe x8 edge connector
Two HSMC connectors
SMB for serial digital interface (SDI) input and output
QSFP optical cage
10/100/1000Mbps Ethernet PHY (SGMII) with RJ-45 (copper) connector
Power
Laptop DC input
PCIe edge connector
Nios® II processor web server and remote system update

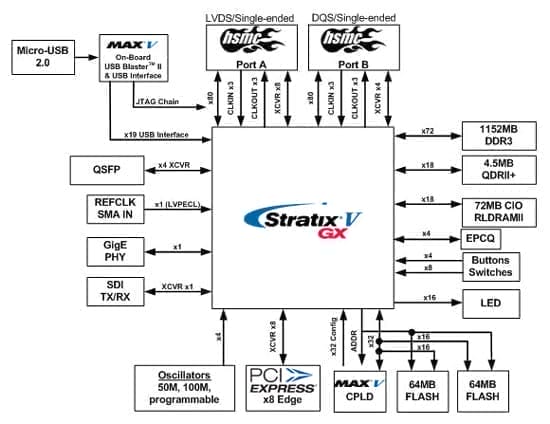

Stratix V GX FPGA Development Board Block Diagram
Terasic DVI-HSMC Card
Digital Transmitter
One DVI transmitter with single transmitting port
Digital Visual Interface (DVI) Compliant
Supports resolutions from VGA to UXGA (25 MHz – 165 MHz Pixel Rates)
Universal Graphics Controller Interface
12-Bit, Dual-Edge and 24-Bit, Single-Edge Input Modes
Adjustable 1.1 V to 1.8 V and Standard 3.3 V CMOS Input Signal Levels
Fully Differential and Single-Ended Input Clocking Modes
Standard Intel 12-Bit Digital Video Port Compatible as on Intel™ 81x Chipsets
Enhanced PLL Noise Immunity
On-Chip Regulators and Bypass Capacitors for Reducing System Costs
Enhanced Jitter Performance
Programmable Using I²C Serial Interface
Single 3.3-V Supply Operation
No HSYNC Jitter Anomaly
Negligible Data-Dependent Jitter
Digital Receiver
One DVI receiver with single receiving port
Supports UXGA Resolution (Output Pixel Rates Up to 165 MHz)
Digital Visual Interface (DVI) Specification Compliant
True-Color, 24 Bit/Pixel, 16.7M Colors at 1 or 2-Pixels Per Clock
Laser Trimmed Internal termination Resistors for Optimum Fixed Impedance Matching
4x Over-Sampling
Reduced Ground Bounce Using Time Staggered Pixel Outputs
Lowest Noise and Best Power Dissipation Using TI PowerPAD™ Packaging
No | 产品名称 | 售价(RMB) |
---|---|---|
1. |
[S5GFP+DVI] Stratix V GX Video Development System
产品编号: K0117 ![]() | xxx |
