【DCC】TERASIC友晶高速数字模拟转换子板

  • 产品型号: DCC
  • 产品品牌: TERASIC友晶科技/Intel FPGA
  • 产品规格: AD and DA up to 150MSPS and 250MSPS
  • 产品价格: 欢迎咨询采购,量多优惠多,提供完善的售后保障和支持!
  • 咨询热线:18062095810

  • 主要特性介绍
    此数据用 HSMC 子板可支持数字转模拟与模拟转数字接口,其中包含音效编译码接口。High Speed Mezzanine Card (HSMC) 系列子卡可搭配任何配有 HSMC 接头的 Altera 与友晶开发平台 (ex. DE3),用以开发数字讯号处理应用程序。
  • External Links or Resources
    Altera DE3 - Stratix III High Speed Rapid Prototyping System

功能介绍

  • Spec
    • One High Speed Mezzanine Card (HSMC) connector for interface conversion, which is fully compatible with Altera Development boards and Terasic DE3 host boards.
    • External Clock In / Out Interface
    • Two 14-bit Analog to Digital (A/D) converter channel with 150MSPS
    • Two 14-bit Digital to Analog (D/A) converter channel with 250MSPS
    • One Audio CODEC with Line-In, Line-Out, MIC and Headphone

  • Size :145mm x 80mm x 18mm (L x W x H)

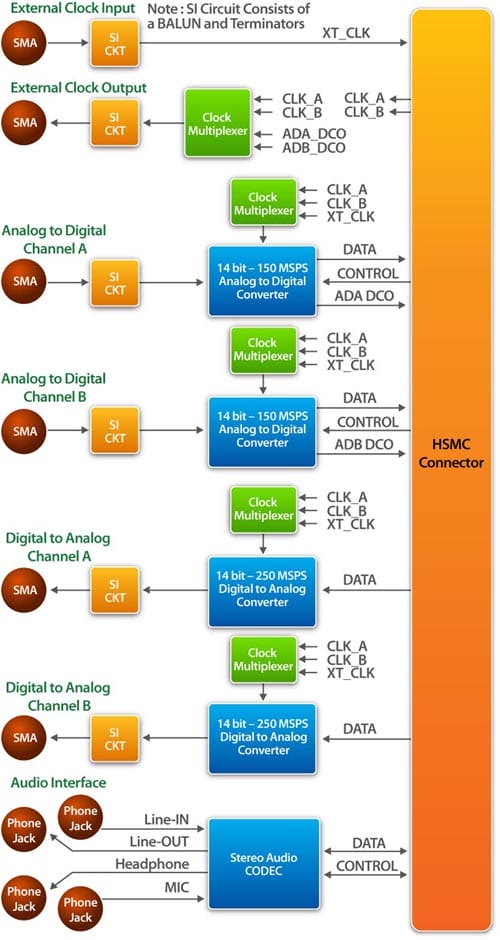

功能方塊圖

应用特色

  • Low cost oscilloscope and pattern generator
  • Communication Transceiver
  • Digital signal processing
  • Platform for various modulation techniques
  • Record and playback sound

连接性

 DCC-HSMC 接口连接示意图

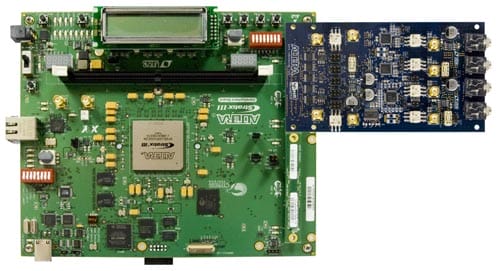

  • DCC-HSMC  Altera Stratix III Development Board  连接示意图

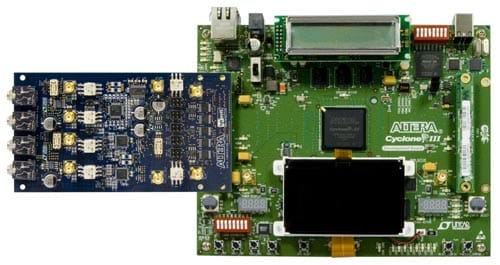

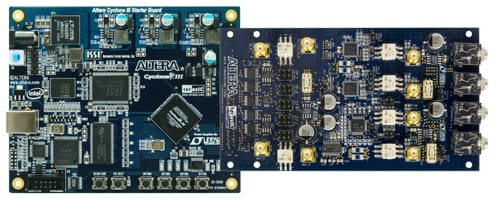

  • DCC-HSMC  Altera Cyclone III Development Board  连接示意图

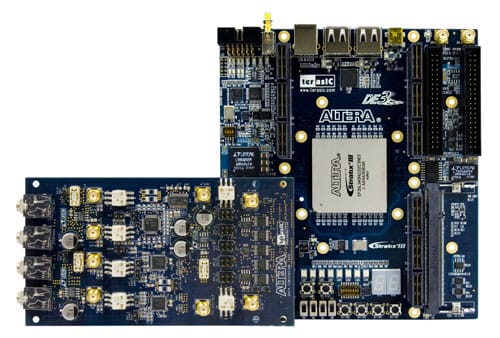

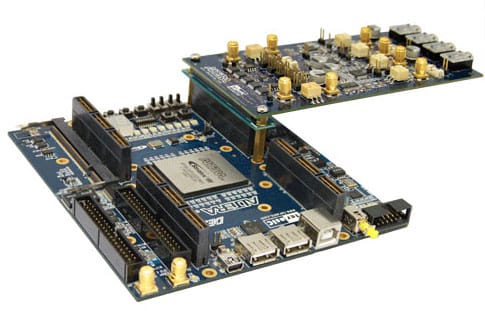

  • DCC-HSMC  Altera DE3  连接示意图
    备注 :  连接时需使用 SFF 转接板 , 此转接板已内含于 DE3 产品中

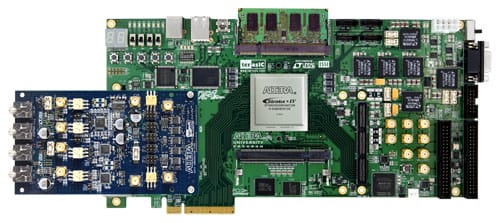

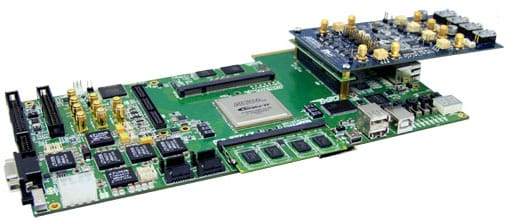

  • DCC-HSMC  Altera DE4 连接示意图
    备注 连接时需使用一块 HMF2 转接板 , 此转接板已内含于 DE4  产品中

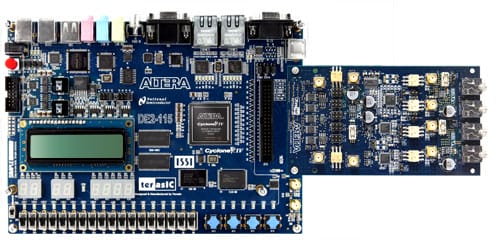

  • DCC-HSMC  Altera DE2-115 连接示意图

Data Conversion HSMC Daughter Board   xxx

Documents

标题 版本 档案大小(KB) 新增日期 下载
Data Conversion HSMC reference manual 1.0.1 712 2011-07-01

CD-ROM

标题 版本 档案大小(KB) 新增日期 下载
高速数位类比转换子板 CD 1.0.1   2011-07-01
